- Made of clear soft PVC or DEHP free material

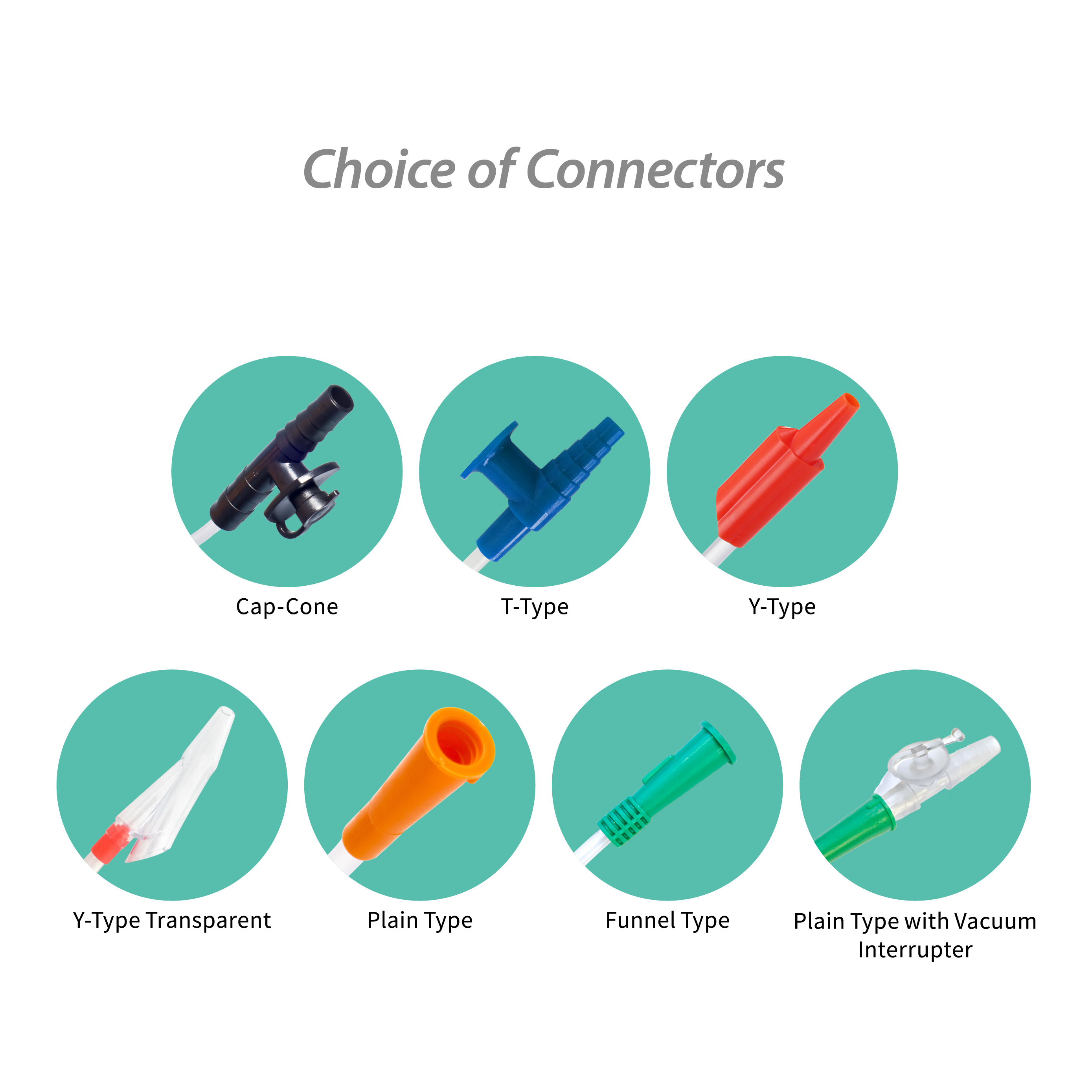

- Color-coded connector for easy identification of size

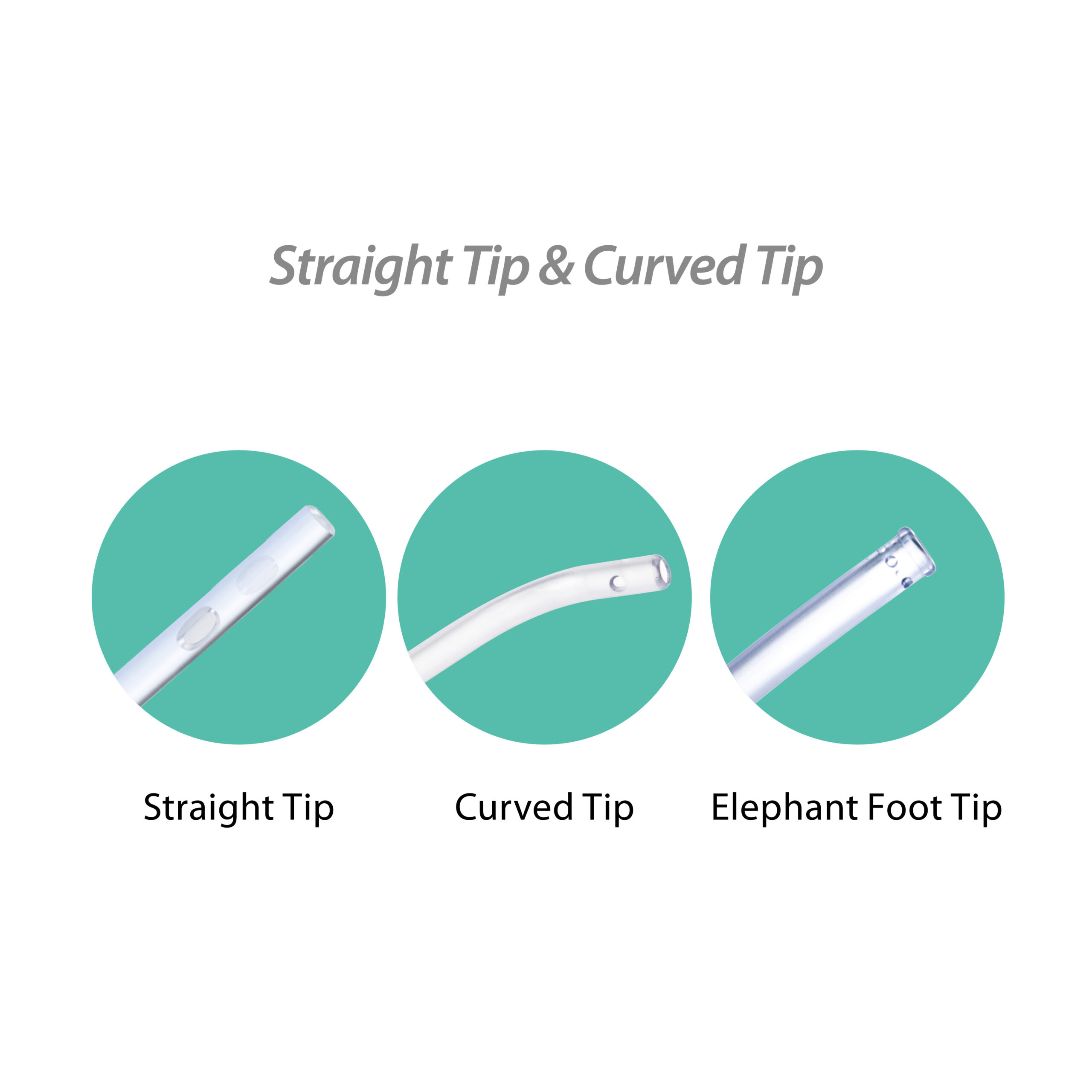

- Soft distal end facilitates comfortable insertion

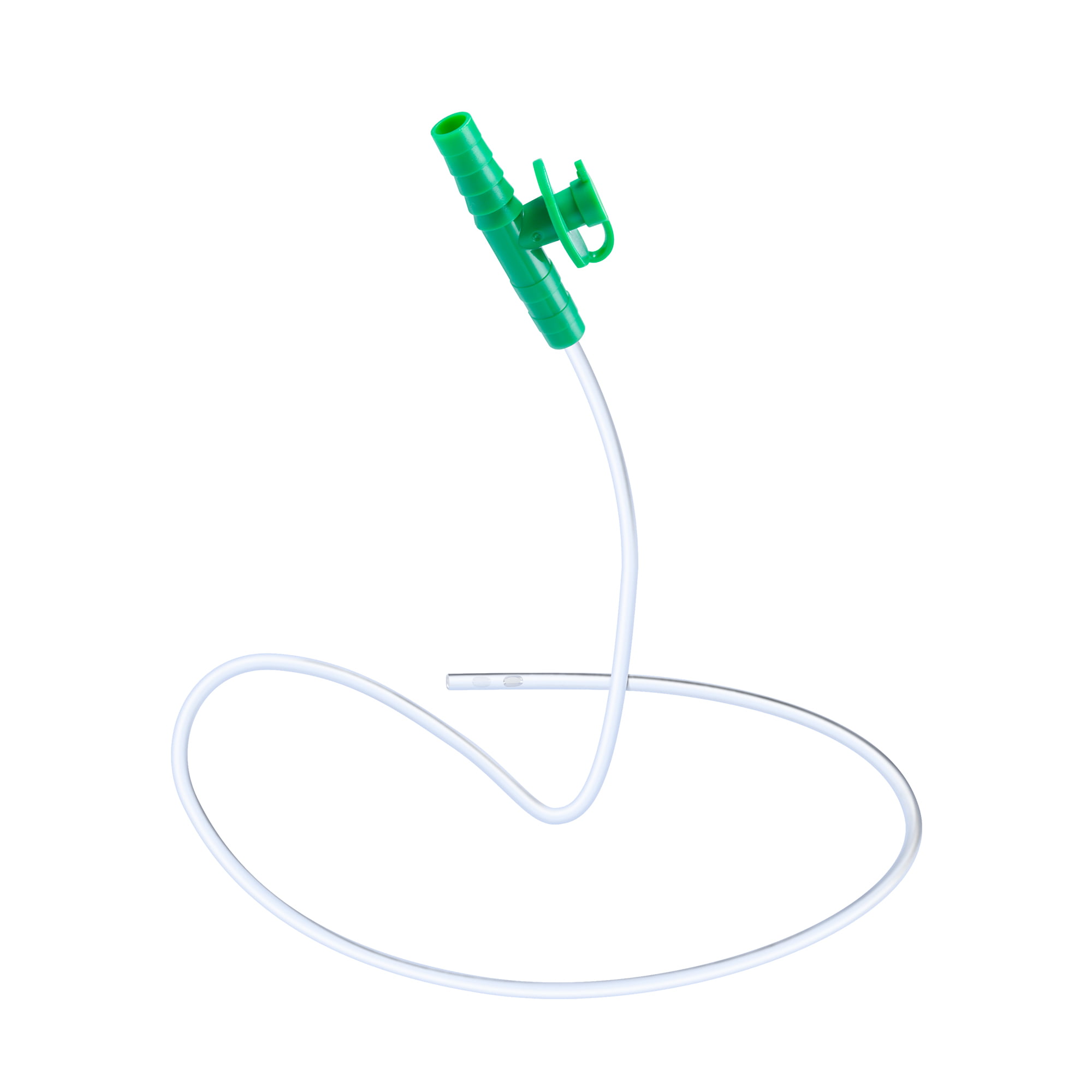

| Cap-Cone | |||
|---|---|---|---|
| Size | Color Code | Cat. No. (PVC) | Cat. No. (DEHP-FREE) |
| 5Fr | Grey | N02A040510 | N02A04051F |
| 6Fr | Light Green | N02A040610 | N02A04061F |
| 8Fr | Blue | N02A040810 | N02A04081F |
| 10Fr | Black | N02A041010 | N02A04101F |
| 12Fr | White | N02A041210 | N02A04121F |
| 14Fr | Green | N02A041410 | N02A04141F |
| 16Fr | Orange | N02A041610 | N02A04161F |
| 18Fr | Red | N02A041810 | N02A04181F |
| 20Fr | Yellow | N02A042010 | N02A04201F |

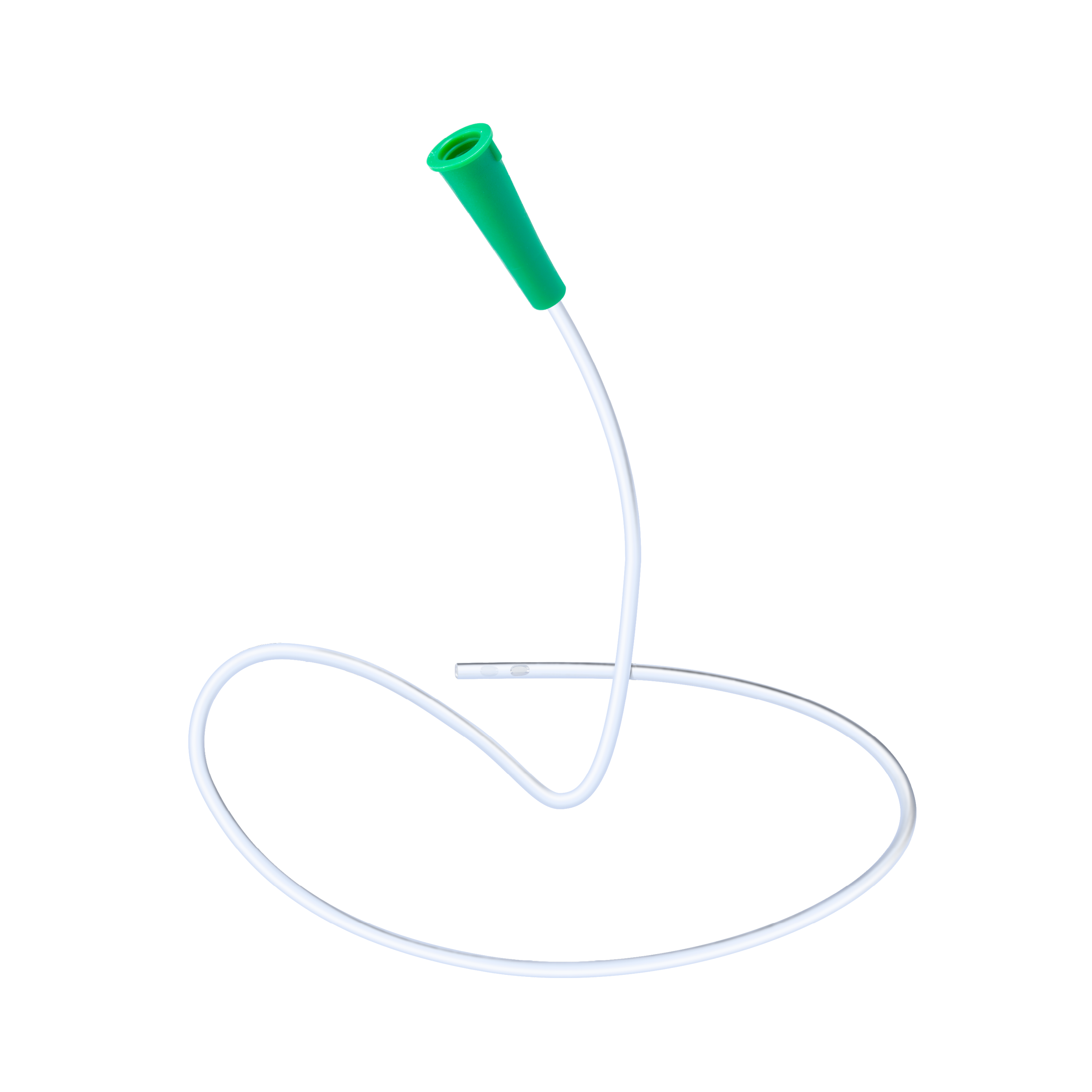

| Plain Type | |||
| Size | Color Code | Cat. No. (PVC) | Cat. No. (DEHP-FREE) |
| 5Fr | Grey | N02A010510 | N02A01051F |
| 6Fr | Light Green | N02A010610 | N02A01061F |
| 8Fr | Blue | N02A010810 | N02A01081F |
| 10Fr | Black | N02A011010 | N02A01101F |
| 12Fr | White | N02A011210 | N02A01121F |
| 14Fr | Green | N02A011410 | N02A01141F |
| 16Fr | Orange | N02A011610 | N02A01161F |
| 18Fr | Red | N02A011810 | N02A01181F |
| 20Fr | Yellow | N02A012010 | N02A01201F |
| 22Fr | Purple | N02A012210 | N02A01221F |
| T-Type | |||
| Size | Color Code | Cat. No. (PVC) | Cat. No. (DEHP-FREE) |
| 5Fr | Grey | N02A020510 | N02A02051F |
| 6Fr | Light Green | N02A020610 | N02A02061F |
| 8Fr | Blue | N02A020810 | N02A02081F |
| 10Fr | Black | N02A021010 | N02A02101F |
| 12Fr | White | N02A021210 | N02A02121F |
| 14Fr | Green | N02A021410 | N02A02141F |
| 16Fr | Orange | N02A021610 | N02A02161F |
| 18Fr | Red | N02A021810 | N02A02181F |
| 20Fr | Yellow | N02A022010 | N02A02201F |
| Y-Type | |||
| Size | Color Code | Cat. No. (PVC) | Cat. No. (DEHP-FREE) |
| 5Fr | Grey | N02A030510 | N02A03051F |
| 6Fr | Light Green | N02A030610 | N02A03061F |
| 8Fr | Blue | N02A030810 | N02A03081F |
| 10Fr | Black | N02A031010 | N02A03101F |
| 12Fr | White | N02A031210 | N02A03121F |
| 14Fr | Green | N02A031410 | N02A03141F |
| 16Fr | Orange | N02A031610 | N02A03161F |
| 18Fr | Red | N02A031810 | N02A03181F |
| 20Fr | Yellow | N02A032010 | N02A03201F |
| Y-Type Transparent Connector | |||
| Size | Color Code | Cat. No. (PVC) | Cat. No. (DEHP-FREE) |
| 5Fr | Grey | N02A050510 | N02A05051F |
| 6Fr | Light Green | N02A050610 | N02A05061F |
| 8Fr | Blue | N02A050810 | N02A05081F |
| 10Fr | Black | N02A051010 | N02A05101F |
| 12Fr | White | N02A051210 | N02A05121F |
| 14Fr | Green | N02A051410 | N02A05141F |
| 16Fr | Orange | N02A051610 | N02A05161F |
| 18Fr | Red | N02A051810 | N02A05181F |
| 20Fr | Yellow | N02A052010 | N02A05201F |
