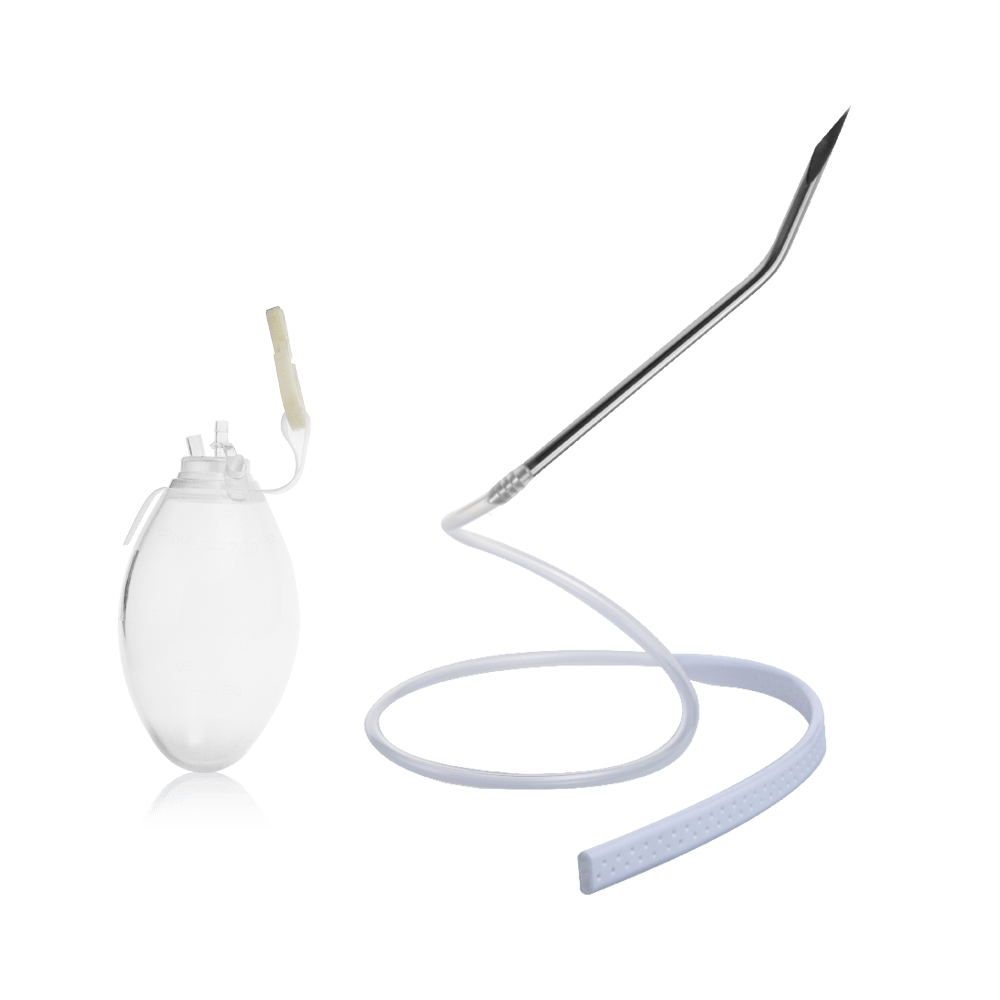

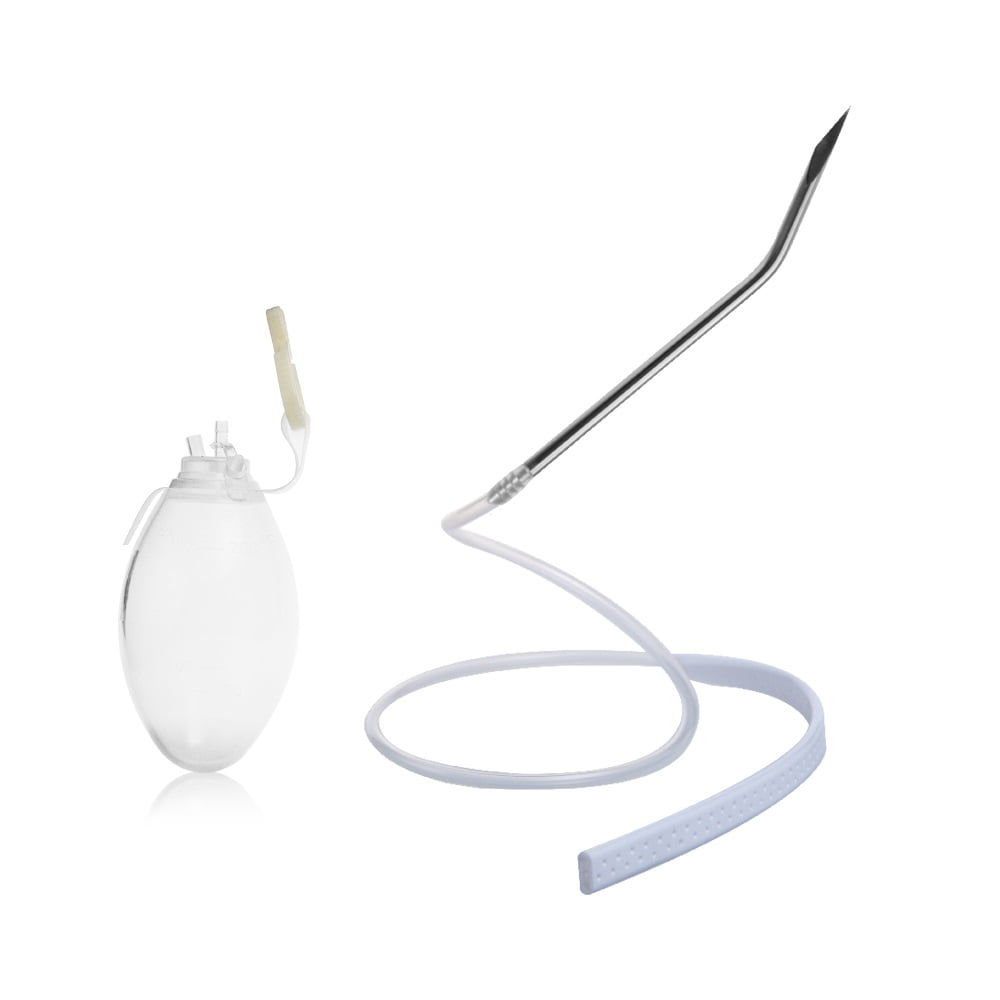

1. Consists of a silicone drain, a pre-attached stainless steel trocar and a silicone reservoir
2. Assembly with various types of silicone drains and accessories available
3. The all-in-one kit simplifies procedural workflows, saving time and effort
4. Sterile
| Drain (Size) | Drain (Perforated/Fluted) | Trocar (Type) | Silicone Reservoir (Type) | Silicone Reservoir (Size) | Cat. No. |
| Silicone Flat Perforated Drainage Tube | |||||
| 3.5mm × 7.5mm | Full | 150°-bent | Screw Cap | 100mL | N01D020619 |
| 4mm × 10mm | Full | 150°-bent | Screw Cap | 100mL | N01D020418 |
| Silicone Round Perforated Drainage Tube | |||||
| 10Fr | 72 Staggered Holes - End | 150°-bent | Screw Cap | 100mL | N01D061013 |
| 15Fr | 72 Staggered Holes - End | 150°-bent | Screw Cap | 100mL | N01D061513 |
| 19Fr | 72 Staggered Holes - End | 150°-bent | Screw Cap | 100mL | N01D061913 |
| 10Fr | 92 Staggered Holes - Center | 150°-bent | Screw Cap | 400mL | N01D081014 |
| 15Fr | 92 Staggered Holes - Center | 150°-bent | Screw Cap | 400mL | N01D081514 |
| 19Fr | 92 Staggered Holes - Center | 150°-bent | Screw Cap | 400mL | N01D081914 |
| Silicone Flat Fluted Drainage Tube | |||||
| 4mm × 7mm | 3 / 4 | 150°-bent | Screw Cap | 150mL | N01D070922 |
| 4.5mm × 10mm | 3 / 4 | 150°-bent | Screw Cap | 150mL | N01D071022 |
| 4mm × 7mm | Full | 150°-bent | Screw Cap | 150mL | N01D071122 |
| 4.5mm × 10mm | Full | 150°-bent | Screw Cap | 150mL | N01D071222 |
| Silicone Round Fluted Drainage Tube - Hubless Type | |||||
| 10Fr | Full | 150°-bent | Screw Cap | 200mL | N01D091015 |
| 15Fr | Full | 150°-bent | Screw Cap | 200mL | N01D091515 |
| 19Fr | Full | 150°-bent | Screw Cap | 200mL | N01D091915 |
| 24Fr | Full | 150°-bent | Screw Cap | 200mL | N01D092415 |
| Silicone Round Fluted Drainage Tube - Sectional Type | |||||
| 10Fr | Full | 150°-bent | Screw Cap | 400mL | N01D101014 |
| 15Fr | Full | 150°-bent | Screw Cap | 400mL | N01D101514 |
| 19Fr | Full | 150°-bent | Screw Cap | 400mL | N01D101914 |
| 10Fr | 3 / 4 | 150°-bent | Screw Cap | 400mL | N01D111014 |
| 15Fr | 3 / 4 | 150°-bent | Screw Cap | 400mL | N01D111514 |
| 19Fr | 3 / 4 | 150°-bent | Screw Cap | 400mL | N01D111914 |
• The trocar is available in 3 types: 150°-bent trocar, 166°-bent trocar and bendable trocar
• The silicone reservoir is available in 4 sizes: 100, 150, 200 and 400 mL, all with the option of screw-cap type or plug-cap type
• Available with a connector for connecting the drain to a spring reservoir
|
|
|
|
|
|
|
|
|
|
|
|
